Continuity tester Circuit

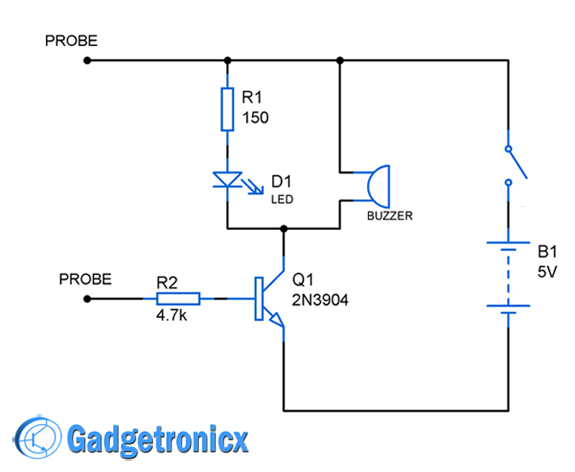

Testing the continuity of a circuit is an essential step when comes to debugging hardware. Hardware debugging can be a real pain when we are not equipped with proper tools and devices to handle it. This Continuity tester circuit will provide a cheap and efficient solution for the debugging problems. The above circuit is capable of checking the connectivity that is electrical conduction path between two points.


This circuit uses a Red LED and a buzzer to indicate there is a electrical path established between two points. The entire circuit can be powered by a simple 5 volt battery. A simple NPN transistor 2N3904 forms the base of this above circuit. This transistor was used as a switch to both the LED and buzzer connected to it.

Probes are nothing but a conducting medium (wire) that helps to test the conductivity between two points. When probes are placed between two points in a circuit if the two points are not internally connected in the hardware there will be no electrical path which in turn keeps the transistor in OFF state. So the buzzer and LED remains in off state indicating there is no conductivity between the two points.

When probes are placed between two points where there is an internal connection that is an electrical path for current flow the transistor will be turned on. This will activate the LED and Buzzer which will act as an indication for continuity between the points to the user. Cost, size and easy usage are the main advantages of this circuit.

Ask your query

2 Comment threads
2 Thread replies
Most reacted comment
Hottest comment thread
3 Comment authors
Frank DonaldGus SmithDejan Recent comment authors
newest oldest most voted
Notify of
Gus Smith
Gus Smith

I built this, but without a buzzer, only an LED. Tested on a bare wire, 10k and 100k resistor. The led lights up every time. Even across an led the led lights up.


What’s with the switch near battery? What does it do???
